Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000QBS (Black Series)

MODEL 209 with CODE (P98) Black Series

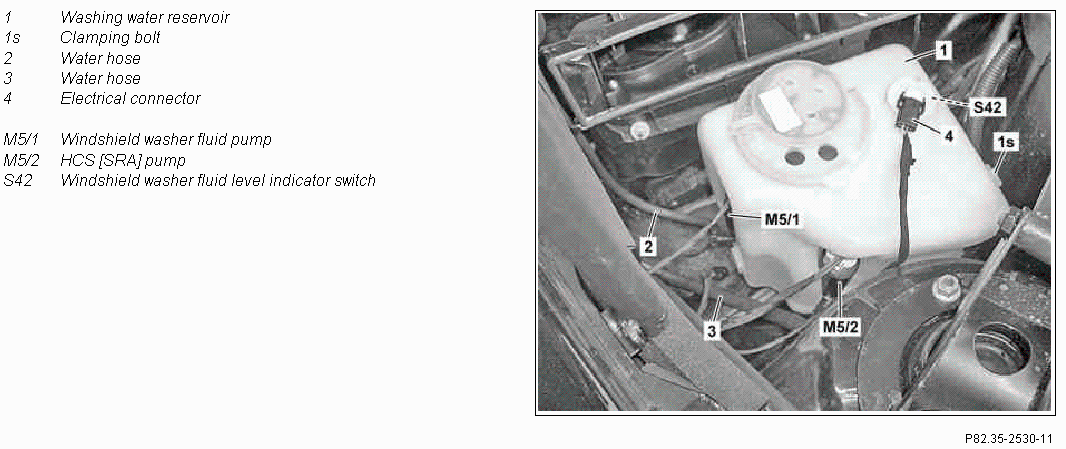

Fig 1: Removing/Installing Washer Fluid Reservoir Of Windshield Washer System - Black Series

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove dust filter		AP83.00-P-8381P
2	Detach electrical connector (4) from windshield washer fluid level indicator switch (S42)
3	Release camp bolt (1s) and lift washer fluid reservoir (1)
4	Remove windshield washer fluid pump (M5/1) and place to one side with lines attached	Collect washer fluid which flows out.
5	Remove HCS [SRA] pump (M5/2) and place to one side with lines attached
6	Take out washer fluid reservoir (1)
7	Remove windshield washer fluid level indicator switch (S42)	When replacing the washer fluid reservoir
8	Install in the reverse order
9	Correct windshield washer system fluid level
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210P
