Remove/install radio - AR82.60-P-7502Q
MODEL 209 up to 31.5.04
MODEL 209 up to 31.5.04 with CODE (756) MB Audio 10 CD radio with TP/RDS

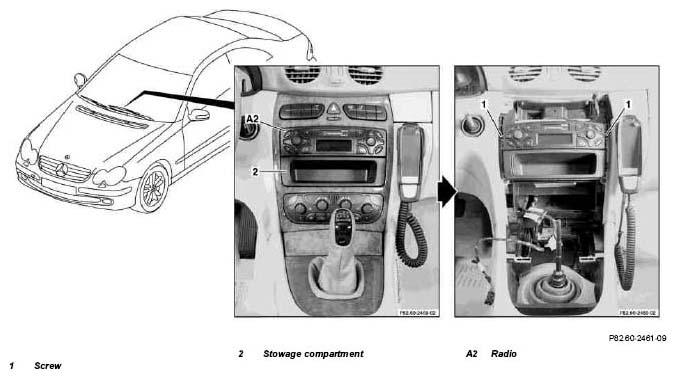

Shown on model 209.3
MODIFICATION NOTES
| 11.2.04 | Disconnect/connect/remove ground lead from battery |
| Remove/install | |||
|---|---|---|---|
| 1 | Remove cover on center console | AR68.20-P-2350Q | |
| 2 | Remove bolts (1) | ||
| 3 | Pull out radio (A2) and stowage compartment (2) | ||
| 4 | Unplug fiber optical cable connector from the radio (A2) | ||
| 5.1 | Cover fiber optic cable | With "portable CTEL" UPCI system code 388, with Sound system code 810, with 6-disc CD changer code 819, with voice control system (VCS) code 813 | AR82.95-P-0005-01A |
| 6 | |||
| Notes on fiber optic cable | Models 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 414, 463.243/244/245 /246/247/248/249/250/254/309/322/323 /332/333 | AH82.70-P-0001-02A | |
| 6 | Detach coupling from radio (A2) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform function check |
