Remove/install portable cellular telephone mount - AR82.70-P-8918QA

MODEL 209 with CODE (854) MB portable cellular telephone portable CTEL mount (telephone) in armrest or stowage compartment

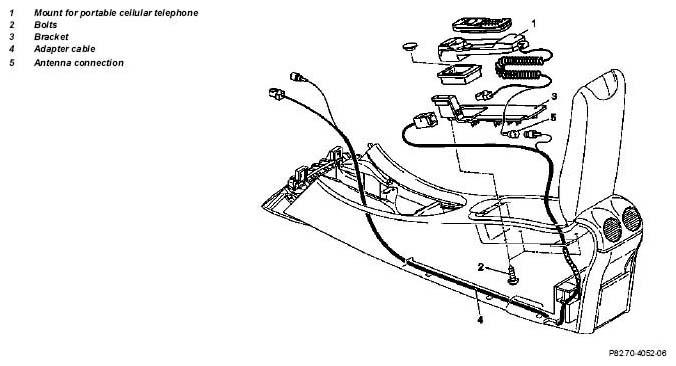

Fig 1: Identifying Portable Cellular Telephone Mount Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove portable CTEL
2	Unscrew screws (2) and lift off console (3)	Three screws.
3	Unplug and unclip adapter line connector (4) and antenna connector (5)
4	Remove portable CTEL mount (1)
5	Install in the reverse order
6	Check for proper function
