Remove/install center high-mounted stop lamp - AR82.10-P-5375Q

MODEL 209

Shows model 209.3

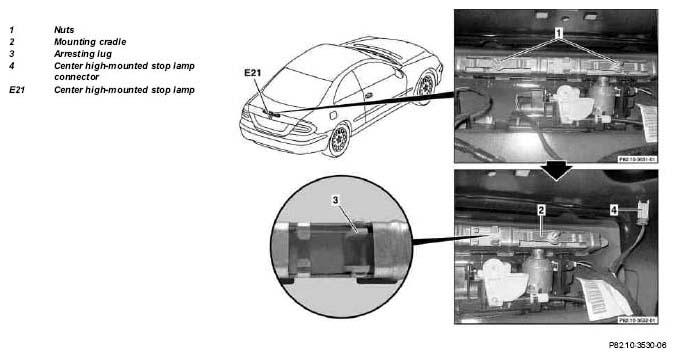

Fig 1: Identifying Center High-Mounted Stop Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
	Risk of injury  from fingers becoming jammed or bruised  when removing and installing and aligning hood, doors, lids and sliding roof		AS00.00-Z-0011-01A
1	Open luggage compartment lid
2	Remove paneling from inside of trunk		AR68.30-P-8150Q
3	Unscrew nuts (1)
4	Remove fastening clip (2)	Installation  : Check locking lug (3), as it may break off.
5	Remove center high-mounted stop lamp (E21)	Disconnect connector (4) prior to complete removal of center high-mounted stop lamp.
6	Install in the reverse order	Installation:  Check condition and correct seating of seal as otherwise moisture penetration may occur.
