Remove/install TV tuner - AR82.85-P-7366PA

MODEL 209.3

with CODE (860) TV tuner

with CODE (352) COMAND operating and display system

except CODE (494) USA version

except CODE (P98) Black Series

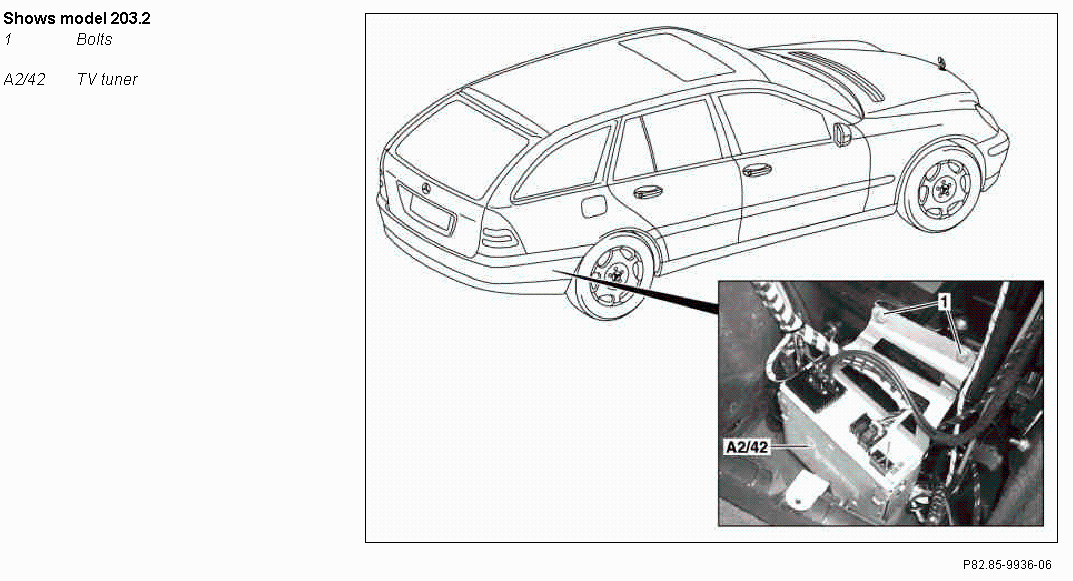

Fig 1: Removing/Installing TV Tuner

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove trim on the right of the luggage compartment		AR68.30-P-4600PB
2	Disconnect coupling for fiber optic cable from TV tuner (A2/42) and fit caps on fiber optic cable coupling and equipment connector	Fiber optic cables must not be kinked, routed around sharp edges or bent to a radius of less than 25 mm, otherwise the fiber optic cable core will be yellowed and broken. Yellowed or broken fiber optic cables weaken the light signal that is transmitted. Do not remove the caps prematurely, as dirty or scratched surfaces weaken the light signal.	AR82.95-P-0005-01A
3	Disconnect electrical connectors from TV tuner (A2/42)
4	Remove bolts (1)
5	Take out TV tuner (A2/42)
6	Install in the reverse order
