Remove/install transmitter/receiver - AR82.70-P-8911Q

MODEL 209.3 with CODE (853) MB standard telephone with CODE (854) MB portable CTEL

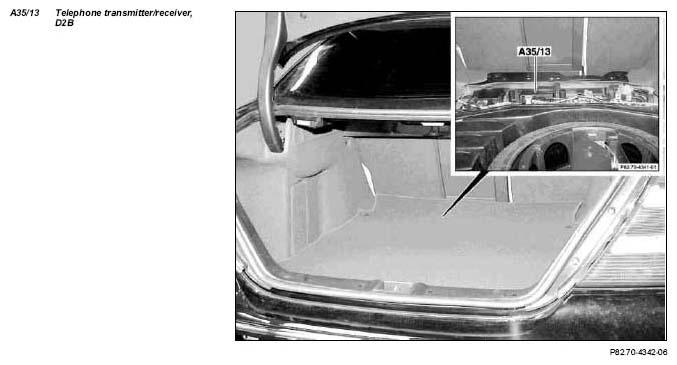

Fig 1: Identifying Transmitter/Receiver Components - Model 209.3

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove cover behind rear seat		AR68.30-P-4600PB
2	Release and remove D2B telephone transmitter / receiver (A35/13)	Do not bend or stretch fiber optic cable D2B, in order to avoid any signal interruption.
3	Disconnect fiber optic cable connector	Do not kink or stretch the D2B fiber optic cable. Install caps on fiber optic cable connector and equipment connector. Refer to: ↓
		Cover fiber optic cable	AR82.95-P-0005-01A
	Notes on fiber optic cable	Model 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333	AH82.70-P-0001-02A
4	Unlock couplings and disconnect
5	Remove D2B telephone transmitter/receiver (A35/13)
6	Install in the reverse order
