Installing auxiliary fan with Audio 30 APS - SM82.61-P-0002A

MODELS 203, 209.3 with CODE (353) Audio 30 APS with Audio 30 APS

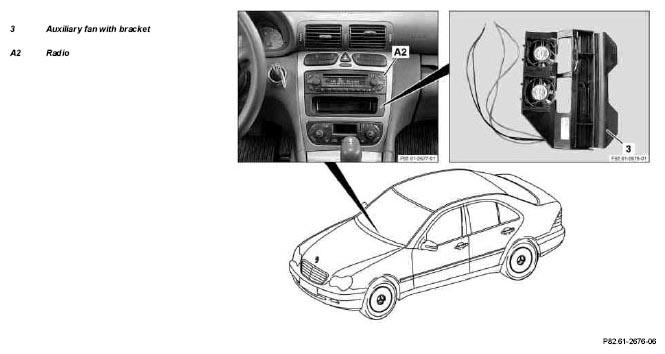

Fig 1: Identifying Auxiliary Fan With Bracket And Radio - Models 203, 209.3 With Code (353)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023732	Retrofit auxiliary fan for Audio 30 APS	013 AW/1.1 h	-	-

	Remove/Install
	Notes on battery	All models	AH54.10-P-0001-01A
1	Connect quiescent current retention unit		AR54.10-P-1030-07I
			*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery		AR54.10-P-0003P
3	Remove radio		AR82.61-P-7412P
4	Detach tray from radio.
5	Attach, connect and install auxiliary fan with bracket		SM82.00-P-0001-01A
6	Install in the reverse order	From step 4
7	Read diagnostic trouble code memory and erase	Stored faults which may be caused by disconnecting cables or by simulation during removal and installation or inspection work, must be processed and erased in the fault memories after completing the work. Refer to:↓ STAR DIAGNOSIS
8	Render electrical system operational	Only if no quiescent current retention unit has been used. Refer to:↓
		Perform basic programming	AR00.19-P-0200P

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 203 680 26 14	Auxiliary fan with bracket	1
A 002 546 00 41	Soldering connector	2

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit
