Fuel tank, location/design/function - GF47.10-P-3000K
MODEL 220 with ENGINE 112.922 /944 /972 /975, 113.941 /948 /960 /966, 137.970
MODEL 215 with ENGINE 137.970
Shown without ski bag
| Fuel tank position | The fuel tank (80) is located in the trunk above the rear axle. | ||
| Fuel tank design | The fuel tank (80) is made of sheet steel. | ||

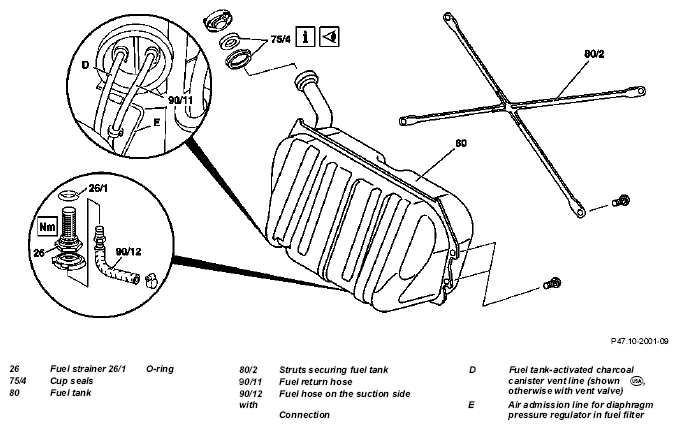

| Fuel tank function | The fuel is drawn through the fuel strainer (26) in the fuel inlet hose (90/12). The fuel flows back along the return flow hose (90/11). The vent line (D) runs to the activated charcoal canister (in some cases with vent valve). | ||
| Fuel tank ventilation system function | Shown on model 210.0 without ski bag | GF47.10-P-3005B | |
| Fuel gage sensor, location/task/design/function | Model 210, 129, 140, 170, 220, 210, 230 | GF47.10-P-3001B | |
| Splash bowl, location/task/function | GF47.10-P-3101C | ||
| Vent valve, location/task/function | Model 129, 163, 170, 210, 215, 220, 230 except |
GF47.30-P-3101D | |
| On-board refueling vapor recovery function | Model 170 as of 9/00 Model 210.0 as of 6/01 Model 215, 220 as of 9/00 |
GF47.10-P-3004B | |
Model 170 up to 8/00 Model 210.2 Model 210.0 up to 5/01 Model 215, 220 up to 8/00 |
GF47.10-P-3004A |
