Yaw rate and lateral acceleration sensor, location / task / design / function - GF42.45-P-4801A: Notes
MODEL 168 as of 1.8.99 with CODE (472a) Electronic Stability Program (ESP)
MODEL 210 with ENGINE 611, 612, 613 with CODE (472a) Electronic Stability Program (ESP)
MODEL 210 as of 1.6.00 with ENGINE 111, 112, 113, 605, 606 with CODE (472a) Electronic Stability Program (ESP)
MODEL 215 with ENGINE 137 with CODE (472a) Electronic Stability Program (ESP)
MODEL 215 as of 1.6.00 with ENGINE 113 with CODE (472a) Electronic Stability Program (ESP)
MODEL 220 with ENGINE 137, 613, 628 with CODE (472a) Electronic Stability Program (ESP)
MODEL 220 as of 1.6.00 with ENGINE 112, 113 with CODE (472a) Electronic Stability Program (ESP)
MODEL 211, 230, 240

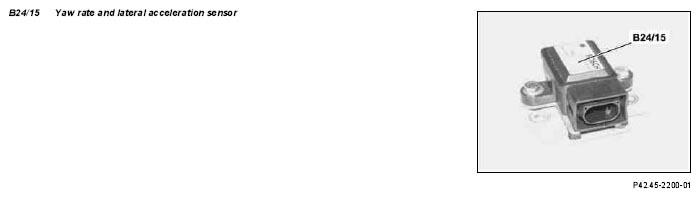

| Yaw rate and lateral acceleration sensor, location | Model 168 | GF42.45-P-4801-01A | |
| Model 210 | GF42.45-P-4801-01B | ||
| Model 211 | GF42.45-P-4801-01E | ||
| Models 215, 220 | GF42.45-P-4801-01C | ||
| Model 230 | GF42.45-P-4801-01S | ||
| Model 240 | GF42.45-P-4801-01MB | ||
| Yaw rate and lateral acceleration sensor, task | Records the yaw rate of the vehicle about the vertical axis and its lateral acceleration. | ||
| Yaw rate and lateral acceleration sensor, design | Combined sensor for yaw rate and lateral acceleration in a micro-mechanical design. | ||
| Yaw rate and lateral acceleration sensor, function | GF42.45-P-4801-04A |
