Stop lamp switch. location/task/function - GF42.10-P-4000AM

MODEL 211, 219 with engine 113.990

MODEL 215 with Engine 113.991

MODEL 220 with Engine 113.991

MODEL 230 with ENGINES 113.992 /995

MODEL 463 with Engine 113.993

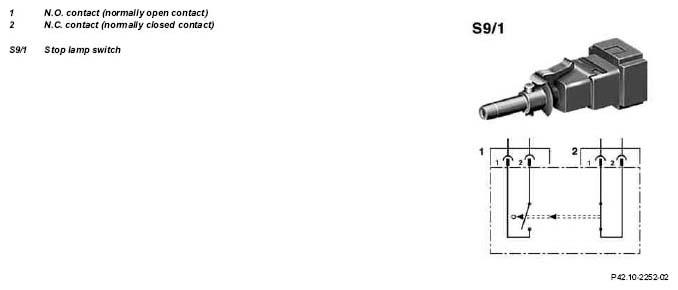

Fig 1: Identifying Brake Light Switch
G04849430
  Stop lamp switch, location The stop lamp switch is attached on top of the brake pedal.
  Stop lamp switch, task The Stop lamp switch provides the signal about the actuation of the brake pedal.
  Stop lamp switch, function
  • The N.O. contact (1) forwards the signal for brake pedal actuation to the stop lamps (stop lamp switch-on)
  • The opener contact (2) gives the signal about brake actuation to the ESP control unit or ESP, SPS and BAS control unit (N47-5), which then transmits the signal on further via the CAN data bus.
