Steering angle sensor, location/task/design/function - GF42.45-P-4600C: Notes
MODELS 211, 215, 220, 230, 240
| Steering angle sensor, position | GF42.45-P-4600-03C | ||
| Steering angle sensor, task | Operating on optical principles, the task of the steering angle sensor (N49) is to sense the steering angle specified by the driver and to transmit it to the connected systems. | ||

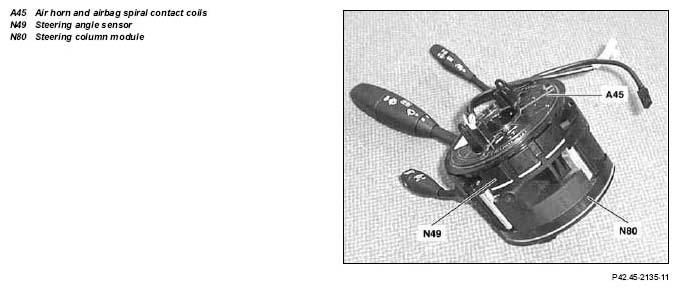

| Steering angle sensor, design | The steering-angle sensor (N49) operates in conjunction with the air horn and airbag spiral contact coils (A45). It is mounted with direct electrical contact to the steering column jacket (N80). | ||
| Steering angle sensor, function | GF42.45-P-4600-02C |
