Location/task/function of ESP brake pressure sensor - GF42.45-P-4900A: Notes
MODEL 129, 140, 168 with CODE (472a) Electronic Stability Program (ESP)
MODEL 202 with ENGINES 112, 113, 604 with CODE (472a) Electronic Stability Program (ESP)
MODEL 208 with ENGINES 112, 113 with CODE (472a) Electronic Stability Program (ESP)
MODEL 210, 215, 220 with CODE (472a) Electronic Stability Program (ESP)

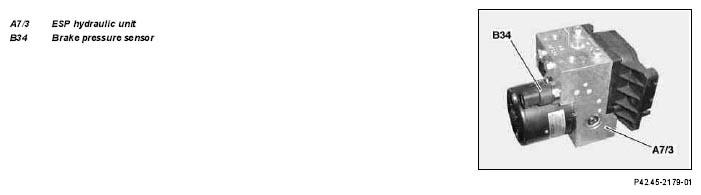

Illustration shows version as of 8/99
| Location of ESP brake pressure sensor | Model 129 with engines 104, 119, 120 | GF42.45-P-4900-02A | |
| Model 168 up to 02/01 | GF42.45-P-4900-02GC | ||
| Model 168 as of 03/01 | GF42.45-P-4900-02GD | ||
| Model 140 Model 210 with engine 119 |
GF42.45-P-4900-02B | ||
| Model 129 with engines 112, 113 Model 202, 208 Model 210 except with engine 119 Models 215, 220 |
GF42.45-P-4900-02C | ||
| Task of ESP brake pressure sensor | Informs ESP control module of pressure occurring during braking procedures | ||
| Function of ESP brake pressure sensor | GF42.45-P-4900-01A |
