Lateral acceleration sensor, function - GF42.45-P-4700-04A
Models 129, 140
Model 168 up to 7/99
Model 202 with engines 112, 113, 604
Models 208, 220 with engines 112, 113
Model 210 with engines 111, 112, 113, 604, 605, 606
Model 215 with engine 113

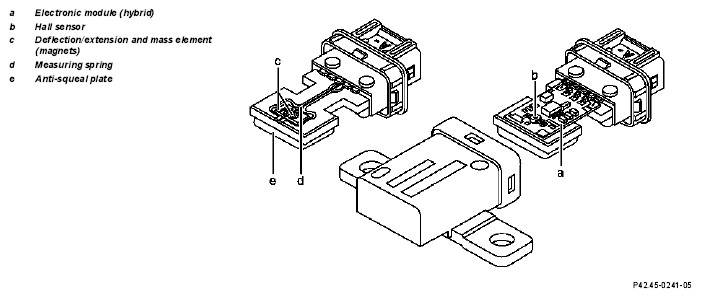

The acceleration sensor (B24/2) contains an electronic module (a) which is used for signal acquisition. The measuring principle of the acceleration sensor is based on a deflection/ extension and mass system. A Hall sensor (b) is integrated in the electronic module. Above the sensor is a deflection/extension and mass element (d, c). The deflection of the deflection/extension and mass element above the Hall sensor (b) to the left or right generates a signal.
When the vehicle is cornering, the lateral forces which occur during lateral acceleration move the deflection/extension and mass element (magnet) from its neutral position.
The Hall sensor element detects this change in position and alters the voltage signal accordingly.
