Distronic (DTR) input and output signals - GF30.30-P-0002-02K

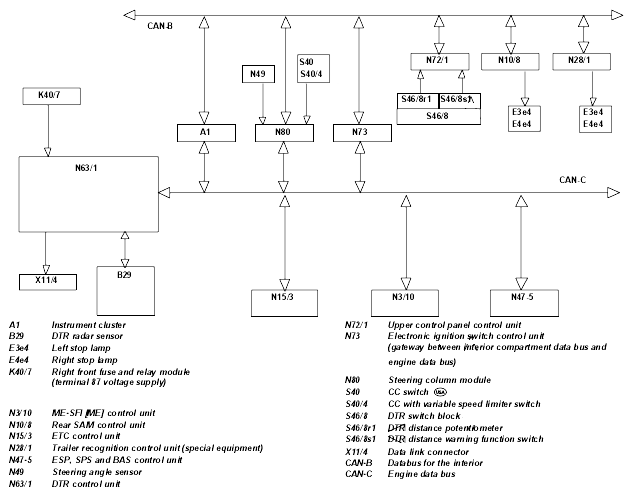

The Distronic control unit receives all the information it requires for its calculations over the CAN data bus.
The Distronic uses the engine torque and braking torque interface in the ESP control unit. All requests are first collected in the ESP control unit so that there are no conflicts with engine and brake interventions between the Distronic and ESP systems. The interventions are then executed according to their importance.
| CAN input signals to the Distronic control unit (N63/1) from |
Information |
| ESP, SPS and BAS control unit (N4747-5) |
- Left front, right front, left rear and right rear wheel speeds
- Reduction or increase of the engine nominal torque
- Distronic shutoff (if message is erroneous)
- Set braking torque
- Distronic brake intervention active
- Emergency braking (all 4 wheels regulated)
- ESP brake intervention active
- Driver braking
- Stop lamp switch
|
| ME-SFI control unit (N3/10) |
- Vehicle code
- Adjusted engine torque for traction control
- Engine speed
- Minimum and maximum engine torque, engine drag torque
- Distronic switched on
- Cylinder shutoff
- Inertia fuel shutoff
|
| ETC control unit (N15/3 |
- Actual gear
- Target gear
- Kick-down
- Transmission code
- ETC in limp-home mode
|
| EIS control unit (N73) |
- Country code
- Distronic (DTR) distance warning function OFF or ON (from upper control panel control unit over interior compartment CAN)
- Distronic (DTR) distance potentiometer specification (from upper control panel control unit over interior compartment CAN)
|
| Instrument cluster (A1) |
- mph instead of km/hour (variable speed limitation)
- Winter tire maximum speed
|
| Steering column module (N80) |
- Pushbutton switch for the cruise control system : "OF"
- Pushbutton switch for the cruise control system : "SET MEMORY"
- Pushbutton switch for the cruise control system : "SET ACCELERATION"
- Pushbutton switch for the cruise control system : "SET DELAY"
- Operation of variable speed limiter, except for
- Cruise control switch implausible
- Steering angle (from 0 to 720°)
- Steering angle sign (right/left)
- Steering angle sensor defective
|
| CAN output signals from the Distronic control unit (N63/1) to |
Information |
| ESP, SPS and BAS control unit (N4747-5) |
- Stop lamp suppression for minimal braking
- Distronic braking
- Distronic defective or OK
- Increase in specified engine torque
- Decrease of specified engine torque
- Distronic active
- Variable speed limiter (VSL) active, except for
|
| Instrument cluster (A1) |
- Distronic distance warning lamp
- Distronic warning tone
- Recognized stationary objects (e.g. a stationary vehicle)
- Switch display to Distronic display
- Distronic switched on (no vehicle ahead)
- Speedometer flashing
- Switch Distronic segment display on
- Vehicle detected ahead
- Distronic switched on (proximity control active)
- "LIMIT" in display, except
- Distronic error
|
| ETC control unit (N15/3) |
- Shift curve offset
- Suppression of dynamic full load position
- Maintain gear position
- Active downshift required
|
The following data is used to detect objects:
Vehicle data:
- Wheel speeds
- Steering angle
- Yaw rate
- Own speed.
Radar data:
- Distance to object
- Relative speed of object
- Angle of object
- Radar beam assignment
- Strength of reflected radar beams.
