Removing and installing wiper arm - AR82.30-P-6100M: Notes

MODEL 220, 215

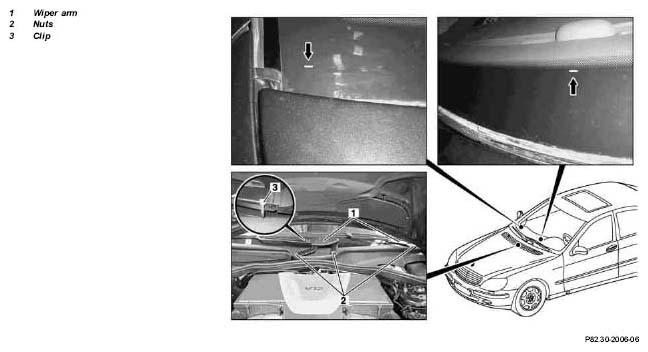

Fig 1: Identifying Wiper Arm, Nuts And Clip

	Removal, installation
	Risk of injury  by trapping or crushing, or in extreme cases severing of limbs when accessing the wiper mechanism	Always remove the ignition key when working on the wiper mechanism.	AS82.30-Z-0001-01A
1	Move wiper system to park position		AR82.30-P-6800-01E
2	Open hood, place in vertical position
3	Unscrew nuts (2)		*BA82.30-P-1004-01A
4	Remove wiper arm (1)	Installation  : The wiper blade must lie directly on the marking (arrow) in the screen printing of the windshield In models 215, 220 after aerowiper started to be used, the clip (3) must be removed when using new wiper blades.
5	Install in reverse order
6	Check operation of windshield wipers

WINDSHIELD WIPER

Number	Designation		Model 215	Model 220
BA82.30-P-1004-01A	Nut for wiper arm	Nm	33	33
