Checking alignment of wheel carrier (removed) - AR40.30-P-0425I

MODELS 220, 215

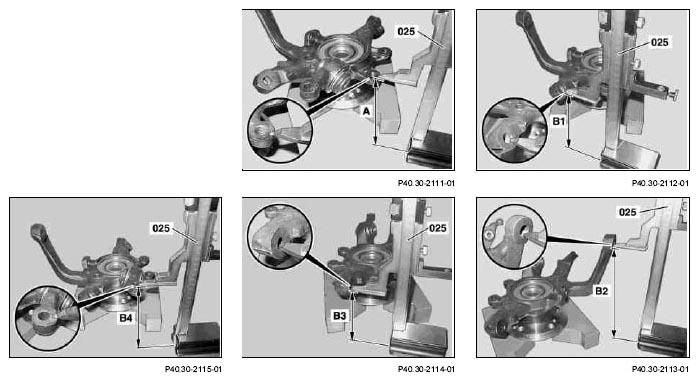

Fig 1: Identifying Alignment Of Wheel Carrier - Models 220, 215

	Removing
1	Remove wheel carrier		AR35.20-P-0115I
	Measuring
2	Place wheel carrier for measurement with the wheel hub or brake disc on parallel supports		*WH58.30-Z-1015-12A
3	Measure and note height dimension "A" as a comparative measurement with the height marking device (025)	Measure at the flat surface of the brake caliper fixing (arrow).	*WH58.30-Z-1016-12A
4	Measure and note height dimension "B1-B4" at the lowest point of the respective bore	The test values are derived from the difference between height dimension "A" and height dimensions: "B1" = Torque strut fixing "B2" = Camber strut fixing "B3" = Track rod fixing "B4" = Connecting rod fixing Torsion bar	*BE40.30-P-1001-02B
	Installing
5	Install wheel carrier		AR35.20-P-0115I

TEST VALUES FOR WHEEL CARRIER

Number	Designation			Model 215	Model 220
BE40.30-P-1001-02B	Difference in height measurement	"B1" - "A"	mm	31 (±1)	31 (±1)
		"B3" - "A"	mm	0.7 (±1)	0.7 (±1)
		"B2" - "A"	mm	108 (±1)	108 (±1)
		"B4" - "A"	mm	56.8 (±1)	56.8 (±1)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1015-12A	Parallel bases
WH58.30-Z-1016-12A	Height marking device
