Removing and installing ski bag housing - AR91.12-P-1746N

MODEL 215

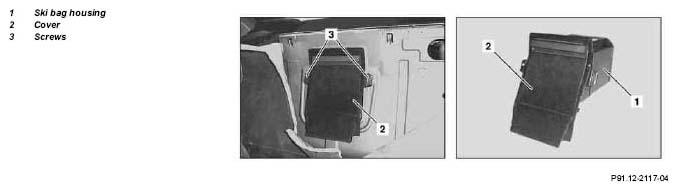

Fig 1: Identifying SKI Bag Housing Remove/Install Components - Model 215 (1 Of 2)

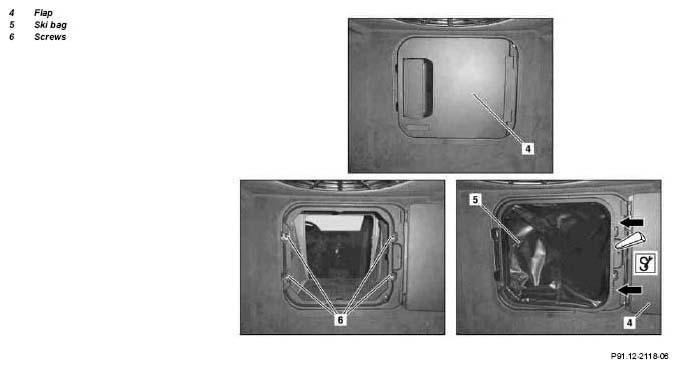

Fig 2: Identifying SKI Bag Housing Remove/Install Components - Model 215 (2 Of 2)

	Removal, installation
1	Lower rear head restraints
2	Remove rear seat stowage box		AR91.12-P-1760M
3	Remove rear seat cushion		AR91.12-P-1020N
4	Remove rear seat backrest		AR91.12-P-1620MA
5	Unscrew screws (3) and remove ski bag housing (1) with cover (2)
6	Open flap (4) in trunk
7	Remove ski bag (5)	Press ski bag frame out of anchor in area of arrows with assembly wedge	Figure
8	Unscrew screws (6) and remove flap (4) with frame
9	Install in opposite order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)
