Removing and installing retractable rear head restraint switch - AR91.29-P-1771N
MODEL 215

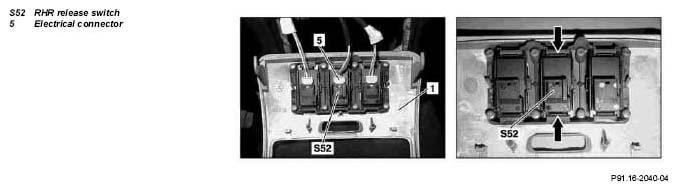

Fig 1: Identifying Retractable Rear Head Restraint Switch Remove/Install Components - Model 215 (1 Of 2)

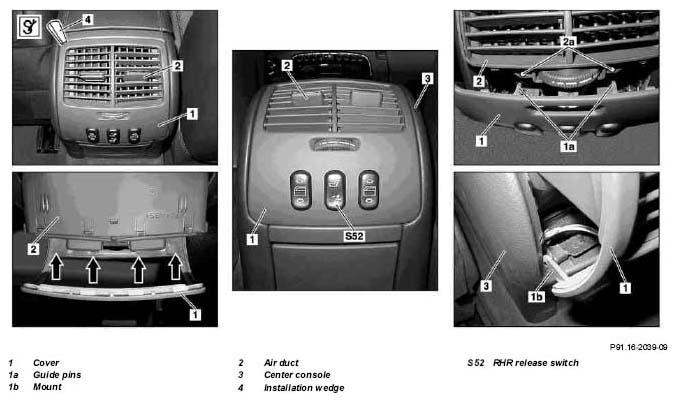

Fig 2: Identifying Retractable Rear Head Restraint Switch Remove/Install Components - Model 215 (2 Of 2)
| Removal, installation | |||
| 1 | Unclip cover (1) from top of center console (3) with installation wedge (4) | Figure | |
| 2 | Lift cover (1) until mount (1b) is unhooked from bottom center console (3) on left and right | ||
| 3 | Unclip air duct (2) from cover (1) (see arrows) | ||
| 4 | Disconnect electrical connector (5) from RHR release switch (S52) | ||
| 5 | Unclip RHR release switch (S52) from cover (1) with suitable tool (arrows) | ||
| 6 | Install in opposite order |
