Remove/install rear door side airbag unit - AR91.60-P-0692MB

MODELS 220.175 /178 with CODE (Z07) Top protection

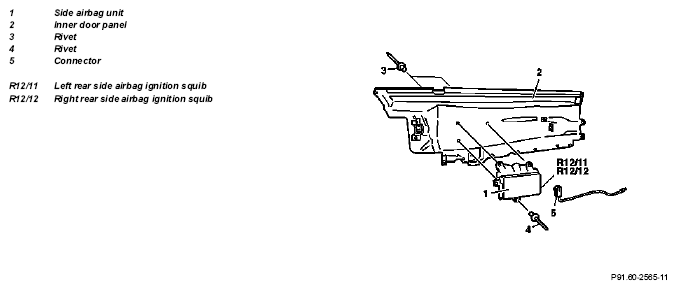

Fig 1: Identifying Rear Door Side Airbag Unit Remove/Install Components - Models 220.175 /178

	Remove/install
	Injury hazard  during test or repair work on airbag units or emergency tensioning retractor units	Store airbag unit with expulsion area on top, do not subject to temperatures above 100 °C. Interrupt power supply when working on such units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal provisions concerning handling and storage of airbag and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Remove inner door panel (2)		AR72.12-P-0104MB
2	Disconnect plug (5) on left rear side airbag squib (R12/11) or right rear side airbag squib (R12/12)	Installation:  The plug (5) must lock in position audibly when being plugged in
3	Drill out rivets (3, 4)	Installation:  The rivets (3) must be riveted from behind in order to prevent damage to the window.
4	Remove side airbag (1) from inner door panel (2)	Disposal: If the side airbag (1) is replaced, the defective one should be disposed of properly: ↓
		Notes regarding the disposal of airbag and belt tensioner units	OS91.00-P-0001-01A
5	Install in the reverse order
