Removing and installing lumbar support control valve from front seat backrest - AR91.25-P-1440M
MODELS 220.0 /1 except CODE (404b) Multicontour backrest driver seat except CODE (405b) Multicontour backrest passenger seat except CODE (433) Left dynamic seat, incl. multicontour seat except CODE (434) Right dynamic seat, incl. multicontour seat
With model refinement 2003 (as of 1.9.02) the position of the control valve (1) has been changed to the inboard side of the seat.

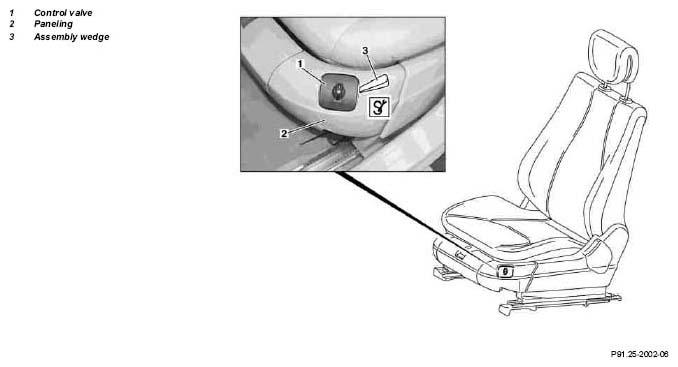

Fig 1: Identifying Lumbar Support Control Valve From Front Seat Backrest Remove/Install Components - Models 220.0 /1
| Remove/install | |||
| 1 | Unclip control valve (1) with assembly wedge (3) from front seat paneling (2) | Figure | |
| 2 | Detach pneumatic line and disconnect pneumatic connector | ||
| 3 | Install in the reverse order | ||
| 4 | Perform lumbar support function check |
