Remove/install seat occupied recognition sensor - AR91.60-P-0720MB

MODEL 220.0 /1 as of 1.9.02

Front passenger seat only

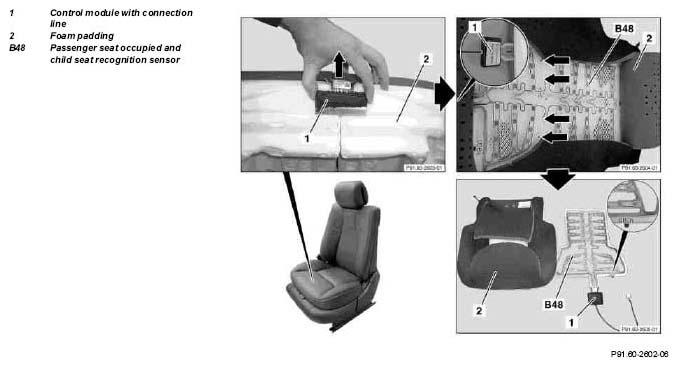

Fig 1: Identifying Seat Occupied Recognition Sensor Remove/Install Components - Model 220.0 /1 As Of 1.9.02

	Remove/install
	Important instructions for performing repair, body work and welding on vehicles with airbags or belt tensioner units	Model 203, 209, 211.004/ 006/ 016/ 061/ 065/ 070, 215, 220, 230, 240, 450.3/4. Model 463.244 /245 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333.	AH91.00-P-0002-01M
1	Remove cover of front seat cushion	On the passenger-side only.	AR91.18-P-1800MB
2	Pull control module with connection line (1) out of the end face of the foam padding (2) (see arrow)	Guide connection line through the slot in the foam padding (2).
3	Open foam padding (2) on the seat surface and expose front passenger seat occupied and child seat recognition sensor (B48)
4	Pull fastening hooks (see arrows) out of the foam padding (2)	Pull out the fastening hooks slowly and carefully so that the foam support (2) is not damaged.
5	Pull out the control module with connection line (1) between the core and seat surface of the foam padding (2)
6	Remove front passenger seat occupied and child seat recognition sensor (B48) from seating surface of the foam support (2)	Installation:  It is essential to ensure that the film with the identification "TOP  " (see enlarged section) is inserted upwards.
7	Install in the reverse order
8	Carry out diagnosis	STAR DIAGNOSIS
