Remove/install seat belt (front seat) - AR91.40-P-1010MC
MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection
| Remove/install | |||
| Risk of injury caused by release of spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury. Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag unit with deployment face up, do not subject to temperatures above 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Instructions for performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractors | AH91.00-P-0004-01A | ||

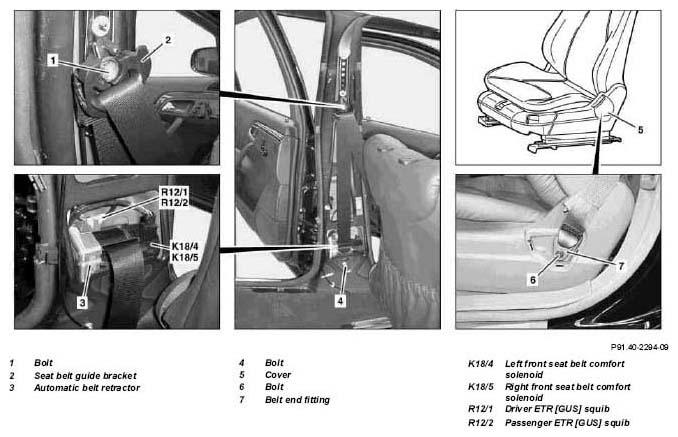

| 1 | Move front seat as far forward as possible with backrest upright | ||
| 2 | Withdraw ignition key | ||
| 3 | Detach cover (5) from belt end fitting (7) and unscrew bolt (6) | *BA91.40-P-1001-01A | |
| 4 | Remove paneling on B-pillar | AR68.30-P-4700MC | |
| 5 | Unscrew bolt (1) from seat belt guide bracket (2) | *BA91.40-P-1002-01A | |
| 6 | Disconnect connector from the driver ETR squib (R12/1) or front passenger ETR squib (R12/2) | ||
| 7 | Disconnect connector from left front seat belt comfort fit solenoid (K18/4) or right front seat belt comfort fit solenoid (K18/5) | ||
| 8 | Unscrew bolt (4) from automatic belt retractor (3) | *BA91.40-P-1004-01A | |
| 9 | Remove automatic belt retractor (3) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A |
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA91.40-P-1001-01A | Belt end fitting bolt | Nm | 30 |
| BA91.40-P-1002-01A | Bolt/nut on front upper belt guide fitting | Nm | 30 |
| BA91.40-P-1004-01A | Bolt on front automatic belt retractor | Nm | 30 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
