Remove/install rear seat belts - AR91.40-P-0681MC
MODELS 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection
| Remove/install | |||
| Injury hazard due to the spring releasing on the automatic belt retractor | Never dismantle inertia reels | AS91.00-Z-0002-01A | |
| Injury hazard during test or repair work on airbag units or emergency tensioning retractor units | Store airbag unit with expulsion area on top, do not subject to temperatures above 100 °C. Interrupt power supply when working on such units. | AS91.00-Z-0001-01A | |
| Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal provisions concerning handling and storage of airbag and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove parcel shelf | With code (Z04) Light armoring | AR68.30-P-4580MC |
| With code (Z07) Maximum protection | AR68.30-P-4580MB | ||
| 2 | Withdraw ignition key | ||

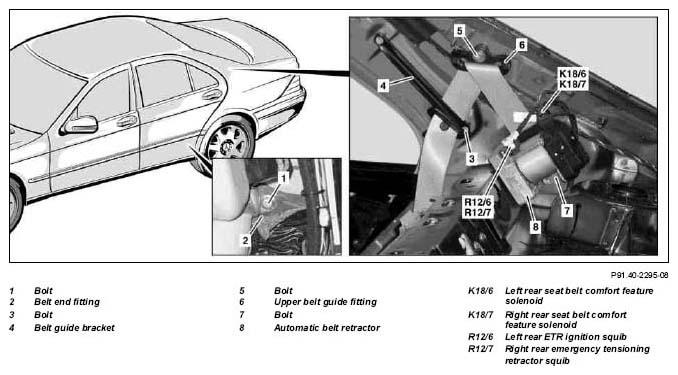

| 3 | Unscrew bolt (3) on belt guide bracket (4) | *BA91.40-P-1010-01A | |
| 4 | Unscrew bolt (5) from seat belt guide bracket (6) | Pay attention to the spacer sleeve under the seat belt guide bracket. |
|
| *BA91.40-P-1005-01A | |||
| 5 | Unscrew bolt (1) from belt end fitting (2) | ||
| *BA91.40-P-1001-01A | |||
| 6 | Disconnect the coupling on the left rear ETR ignition squib (R12/6) or right rear ETR ignition squib (R12/7) | ||
| 7 | Disconnect the coupling from the left rear seat belt comfort-fit solenoid (K18/6) or right rear seat belt comfort-fit solenoid (K18/7) | ||
| 8 | Unscrew bolt (7) on automatic belt retractor (8) | ||
| *BA91.40-P-1006-01A | |||
| 9 | Remove inertia reel (8) | If the automatic belt retractor (8) is replaced, the defective one must be disposed of properly: ↓ | |
| Notes regarding the disposal of airbag and belt tensioner units | OS91.00-P-0001-01A | ||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory | ||
| Connect STAR DIAGNOSIS and interrogate fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A |
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA91.40-P-1001-01A | Belt end fitting screw | NM | 30 |
| BA91.40-P-1005-01A | Screw in rear upper belt guide fitting | NM | 30 |
| BA91.40-P-1006-01A | Bolt to rear inertia reel | NM | 30 |
| BA91.40-P-1010-01A | Screw to rear belt guide | NM | 10 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
