Remove/install rear seat belt buckle - AR91.40-P-1516M

Models 220.0 /1

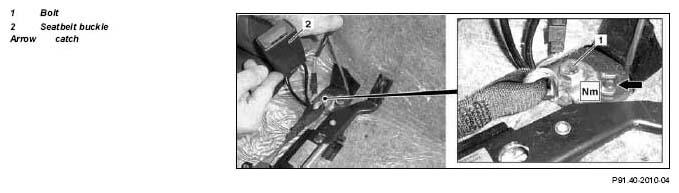

Fig 1: Identifying Rear Seat Belt Buckle Remove/Install Components - Models 220.0 /1

	Remove/install
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractor units	Model 203, 209, 211.004/ 006/ 016/ 061/ 065/070, 215, 220, 230, 240, 450.3/4. Model 463.244 /245 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333.	AH91.00-P-0002-01M
1	Remove rear seat cushion	With electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c.	AR91.12-P-1020MB
		Without electrically adjustable rear bench seat, code 223b, or electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c.	AR91.12-P-1020MA
		With electrically adjustable rear bench seat, code 223b.	AR91.12-P-1020M
2	Disconnect seat belt buckle connector
3	Unscrew bolt (1) and remove seat belt buckle (2)	Installation  : Pay attention to the locking (arrow) of the seat belt buckle
		Torque wrench.	Figure
		Screw on rear buckle.	*BA91.40-P-1007-01A
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 220
BA91.40-P-1007-01A	Bolt at rear seat belt buckle	Nm	30

Fig 2: Identifying Torque Wrench (001 589 66 21 00)
