Remove/install rear seat adjustment motor - AR91.29-P-1440M

MODEL 220.0 /1 with CODE (223b) Electrically adjustable rear bench seat

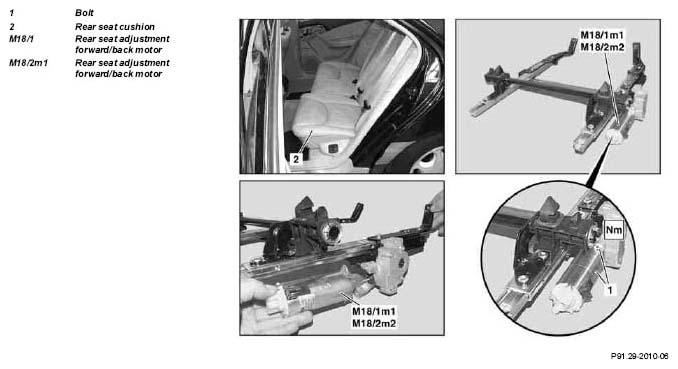

Fig 1: Identifying Rear Seat Adjustment Motor Remove/Install Components - Model 220.0 /1

	Remove/Install
1	Remove seat adjustment device on rear seat		AR91.12-P-1520M
2	Disconnect electrical connection from rear seat adjustment forward/back motor (M18/1m1, M18/2m1)
3	Unscrew bolts (1, 2 pieces) from rear seat adjustment forward/back motor (M18/1m1, M18/2m1) and remove motor	Internal torx set	Figure
		Bolt for seat adjustment motor.	*BA91.29-P-1001-01A
4	Install in the reverse order
5	Perform function check on electric seat adjustment

SEAT ADJUSTMENT

Fig 2: Identifying Torx bit set (000 589 01 10 00)
