Remove/install passenger airbag unit - AR91.60-P-0680M
Models 215, 220

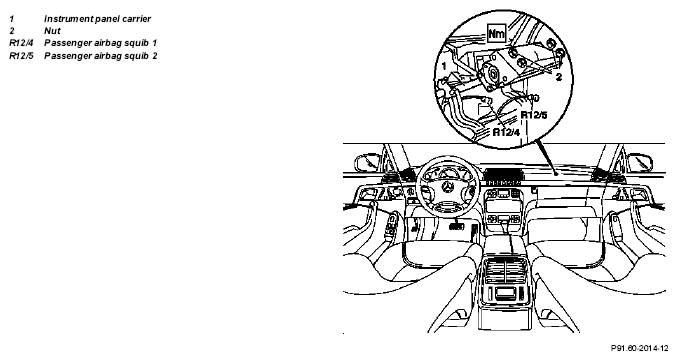

Shown on model 220
| Remove/install | |||
| Risk of injury. Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with expulsion area on top, do not subject to temperatures above 100° C. Interrupt power supply when working on such units | AS91.00-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Instructions for performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractors | AH91.00-P-0004-01A | ||
| 1 | Withdraw ignition key | ||
| 2 | Remove glove compartment | AR68.10-P-1400M | |
| 3.1 | Remove center air nozzle | AR68.10-P-1150N | |
| 4.1 | Remove right side air outlet | AR68.10-P-1100N | |
| 5 | Disconnect plugs from ignition squibs (R12/4 and R12/5) at gas generator | ||
| 6 | Unscrew nuts (2) from front passenger airbag unit | *BA91.60-P-1003-01A | |
| 7 | Take out front passenger airbag unit | If the airbag unit is replaced, dispose of the faulty one in a proper manner.↓ | |
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| Make airbag units unusable | AR91.60-P-0611A | ||
| 8 | Install in the reverse order | ||
| 9 | Carry out diagnosis |
| Number | Designation | Model 215 | Model 220 | |
|---|---|---|---|---|
| BA91.60-P-1003-01A | Nut of front passenger airbag unit to instrument panel mounting | Nm | 8 | 8 |
