Remove/install multicontour backrest air cushion - AR91.25-P-1740MA
MODELS 220.0 /1 with CODE (223b) Electrically adjustable rear bench seat with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package, center air cushion in rear seat

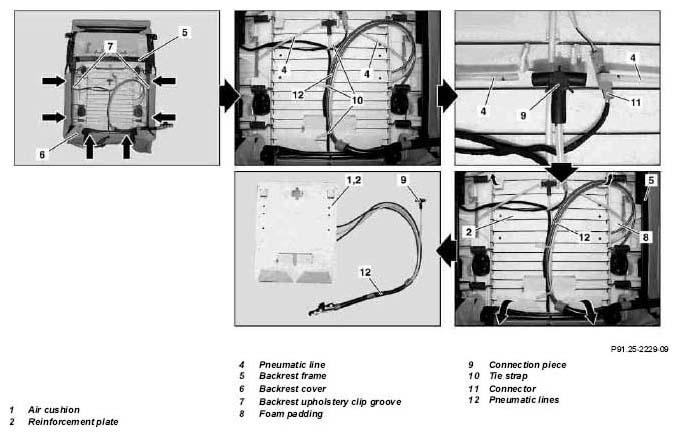

Shown on individual rear seats, electrically adjustable, with seat ventilation, seat heater and memory package, code 224c.
| Remove/Install | |||
| 1 | Remove rear seat backrest | ||
| With electrically adjustable rear bench seat, code 223b. | AR91.12-P-1620M | ||
| With individual rear seats, electrically adjustable, with seat ventilation, seat heater and memory package, code 224c. | AR91.12-P-1620MB | ||
| 2 | Unhook backrest upholstery (6) with backrest upholstery clip groove (7) from backrest frame (5), see arrows | ||
| 3 | Remove tie straps (10, 3 pcs.) and expose pneumatic lines (12) | ||
| 4.1 | Unplug seat ventilation connector (11) | For electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c, or rear seat ventilation, code 402a. | |
| 5.1 | Detach pneumatic lines (4, 2 pcs.) from connecting piece (9) | For electrically adjustable individual rear seats, with seat ventilation, heated seats and memory package, code 224c, or rear seat ventilation, code 402a. |
|
| 6 | Move top and bottom tabs (see arrows) of reinforcement plate (2) | ||
| 7 | Push foam rubber padding (8) away from backrest frame (5) | ||
| 8 | Pull reinforcement plate (2) with air cushion (1) downwards and out between foam rubber padding (8) and backrest frame (5) | Installation: Do not tear off reinforcement plate (2) tabs. Fix top air cushion in place with strips of adhesive tape so that it does not fold over. |
|
| 9 | Install in the reverse order | ||
| 10 | Perform function check of air cushion |
