Remove/install head restraint upholstery - AR91.18-P-1830M
MODELS 220.0 /1 up to 31.8.02

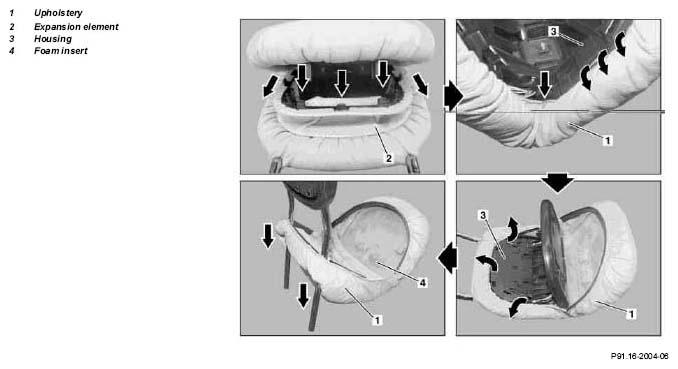

Fig 1: Identifying Head Restraint Upholstery Remove/Install Components - Models 220.0 /1 Up To 31.8.02
| Remove/Install | |||
| 1 | Remove head restraint and place on suitable surface | ||
| 2 | Completely unfold head restraint | ||
| 3 | Remove expansion element (2) | ||
| 4 | Remove upholstery (1) in hinge area at left and right on housing (3) | ||
| 5 | Remove upholstery (1) from clip groove on housing (3) | ||
| 6 | Slide upholstery (1) on guide rods downwards and remove | ||
| 7 | Install in the reverse order |
