Remove/install |
|
|
 |
Instructions for performing repair, body work and welding on vehicles with airbags and ETR units |
|
AH91.00-P-0002-01M |
| 1 |
Remove front seat |
|
AR91.10-P-1000N |
| 2 |

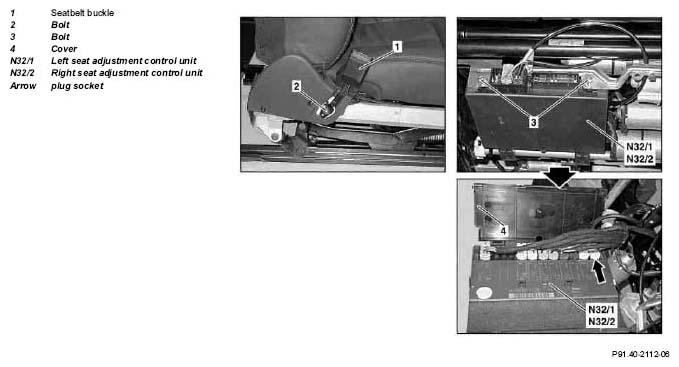

Unscrew screws (3) from seat control unit (N32/1, N32/2) and lower the seat control unit |
|
|
| 3 |
Open cover (4) of seat control unit (N32/1, N32/2) |
|
|
| 4 |
Unplug seat control unit (N32/1, N32/2) plug socket (arrow) |
|
|
| 5 |
Open cable straps of seat belt buckle switch cable on underside of seat |
|
|
| 6 |
Unscrew bolt (2) and remove seat belt buckle (1) |
 |
Figure |
| |
|
 |
*BA91.40-P-1003-01A |
| 7 |
Install in the reverse order |
|
|
