Removing, installing rear air conditioning evaporator - AR83.50-P-9100M

MODEL 220 with CODE (582) Rear air conditioning

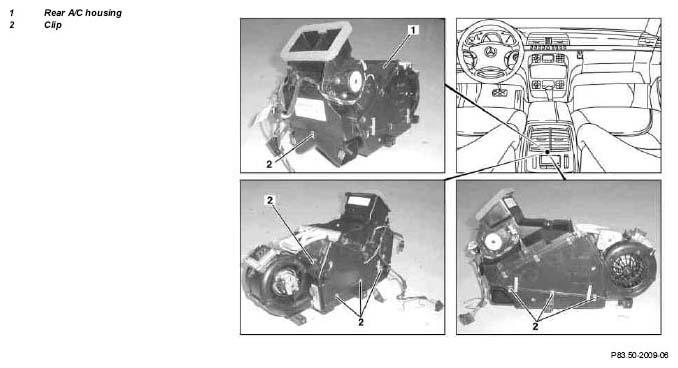

Fig 1: Identifying Rear Air Conditioning Evaporator Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

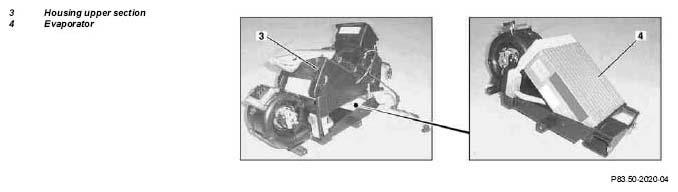

Fig 2: Identifying Rear Air Conditioning Evaporator Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removal, installation
	Explosion hazard  when performing welding or brazing work on closed air conditioning. Poisoning hazard  from inhaling overheated refrigerant vapors. Injury hazard  from skin and eye contact with liquid refrigerant.	Do not perform any type of welding work on closed air conditioning system or in its vicinity. Smoking and open flame prohibited. Wear protective goggles and protective gloves, work only in well-ventilated rooms. Perform repair work on air conditioning circuit only with system emptied.	AS83.00-Z-0001-01A
	Action to be taken in the event air conditioning is damaged or leaks		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture during repair work		AH83.30-N-0005-01A
	Notes on handling R134a refrigerant		AH83.30-N-0003-01A
1	Empty air conditioning (recycle), evacuate, charge, check for leaks	Add quantity of compressor oil removed to refrigerant circuit when charging air conditioning (new oil)
2	Remove rear A/C housing (1)		AR83.50-P-9020M
3	Unclip 8 clips (2)
4	Remove housing upper section (3)
5	Remove evaporator (4)
6	Replace receiver/drier		AR83.30-P-6520M
7	Install in opposite order
