Removing and installing right footwell flap actuator motor - AR83.30-P-2110M

MODEL 215, 220

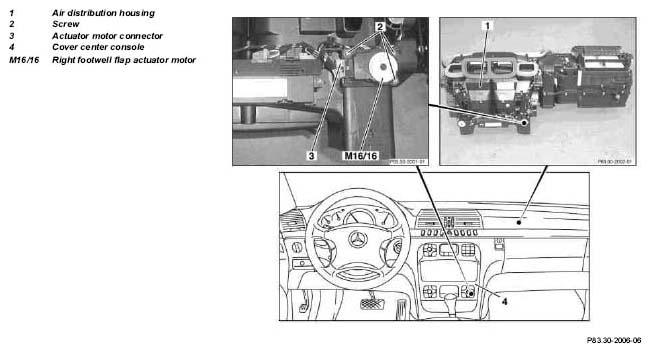

Fig 1: Identifying Right Footwell Flap Actuator Motor (M16/16) Location - Model 220

Courtesy of MERCEDES-BENZ USA

REVISIONS

14.10.98

Synchronization of actuator motors

Step 7, newly included

	Removal, installation
1	Remove cover on center console (4)	Model 215	AR68.20-P-2350N
		Model 220	AR68.20-P-2350M
2	Remove front floor covering (on right)		AR68.20-P-2070M
3	Disconnect actuator motor connector (3)	Connection and disconnection aid
4	Unscrew screws (2)
5	Pull off right footwell flap actuator motor (M16/16)
6	Install in opposite order
7	Perform synchronization of actuator motors	STAR diagnosis, menu point Actuation, synchronization of actuator motors
