Removing and installing right defroster vent flap actuator motor - AR83.30-P-2040M

MODEL 215, 220

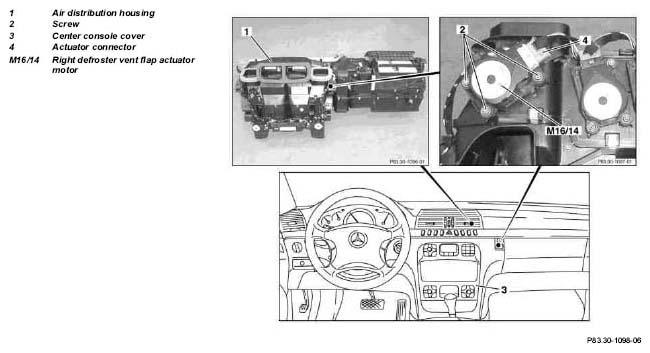

Fig 1: Identifying Right Defroster Vent Flap Actuator Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

REVISIONS

14.10.98

Synchronization of actuator motors

Step 7, newly included

	Removal, installation
1	Remove glove compartment		AR68.10-P-1400M
2	Remove cover from center console (3)	Model 215	AR68.20-P-2350N
		Model 220	AR68.20-P-2350M
3	Disconnect actuator motor connector (4)	Connection and disconnection aid
4	Unscrew screws (2)
5	Pull off actuator for right defroster vent flap actuator motor (M16/14)
6	Reinstall in opposite order
7	Perform synchronization of actuator motors	STAR diagnosis, menu point Actuation, synchronization of actuator motors
