Removing and installing right center vent diverter flap actuator motor - AR83.30-P-2080M
MODEL 215, 220
REVISIONS
| 14.10.98 | Synchronization of actuator motors | Step 11, newly included |
| Removal, installation | |||

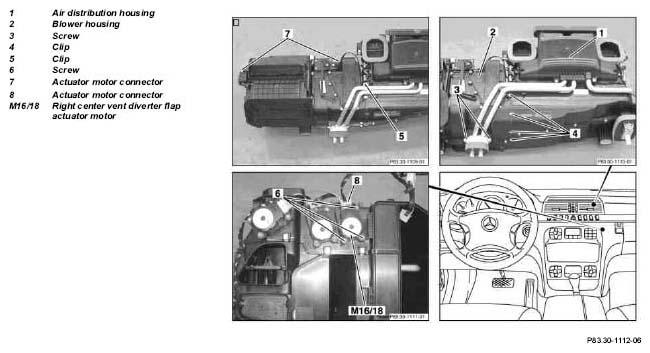

| 1 | Remove A/C housing | AR83.30-P-5200M | |
| 2 | Unscrew screws (3) | ||
| 3 | Disconnect actuator motor connectors (7), unclip wiring harness | ||
| 4 | Unclip clips (4) | ||
| 5 | Pull off 2 clips (5) | ||
| 6 | Separate air distribution housing (1) from blower housing (2) | ||
| 7 | Disconnect actuator motor connector (8) | ||
| 8 | Unscrew screws (6) | ||
| 9 | Pull off right center vent diverter flap actuator motor (M16/18) | ||
| 10 | Install in opposite order | ||
| 11 | Perform synchronization of actuator motors | Actuation, synchronization of actuator motors |
