Removing and installing refrigerant pressure sensor - AR83.30-P-5430M

MODEL 215, 220

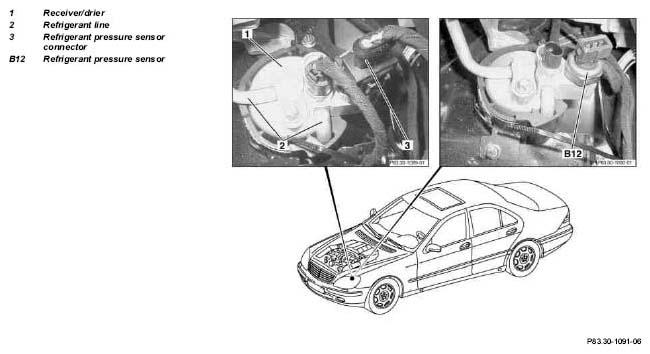

Fig 1: Identifying Refrigerant Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal, installation
	Explosion hazard  when performing welding or brazing work on closed air conditioning. Poisoning hazard  from inhaling overheated refrigerant vapors. Injury hazard  from skin and eye contact with liquid refrigerant.	Do not perform any type of welding work on closed air conditioning system or in its vicinity. Smoking and open flame prohibited. Wear protective goggles and protective gloves, work only in well-ventilated rooms. Perform repair work on air conditioning circuit only with system emptied.	AS83.00-Z-0001-01A
	Action to be taken in the event air conditioning is damaged or leaks		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture during repair work		AH83.30-N-0005-01A
	Notes on handling R134a refrigerant		AH83.30-N-0003-01A
1	Empty air conditioning (recycle), evacuate, charge, check for leaks	Add quantity of compressor oil removed to refrigerant circuit when charging air conditioning (new oil)
2	Disconnect connector for refrigerant pressure sensor (3)
3	Unscrew refrigerant pressure sensor (B12)		*BA83.30-P-1007-01A
		Close openings (parts kit) Installation:  Replace O-ring Moisten thread with compressor oil
4	Replace receiver/drier		AR83.30-P-6520M
5	Install in opposite order

AIR CONDITIONING

Number	Designation		Model 215	Model 220
BA83.30-P-1007-01A	Refrigerant pressure sensor on receiver/drier	Nm	12	12
