Removing and installing heater core temperature sensor - AR83.25-P-1110M

MODEL 215, 220

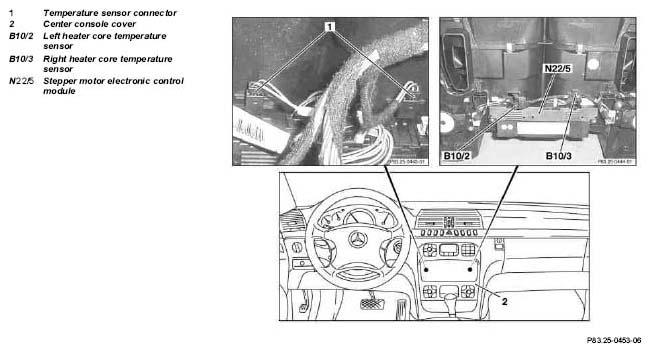

Fig 1: Identifying Heater Core Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal, installation
1	Remove cover on center console (2)	Model 215	AR68.20-P-2350N
		Model 220	AR68.20-P-2350M
2	Disconnect connectors (1)
3	Pull left heater core temperature sensor (B10/2) out of A/C housing
4	Pull right heater core temperature sensor (B10/3) out of A/C housing
5	Install in opposite order
