Removing and installing fresh air/recirculated air flap actuator motor - AR83.30-P-2010M

MODEL 215, 220

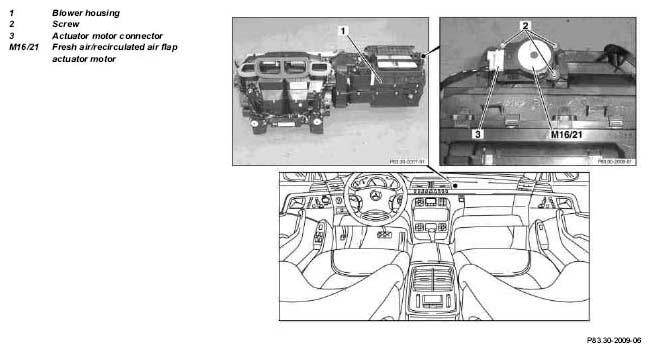

Fig 1: Identifying Fresh Air/Recirculated Air Flap Actuator Motor (M16/21) Location - Model 220

Courtesy of MERCEDES-BENZ USA

REVISIONS

14.10.98

Synchronization of actuator motors

Step 6, newly included

	Removal, installation
1	Remove A/C housing		AR83.30-P-5200M
2	Disconnect actuator motor connector (3)	Connection and disconnection aid 3 Unscrew screws (2)
4	Disconnect fresh air/recirculated air flap actuator motor (M16/21)
5	Install in opposite order
6	Perform synchronization of actuator motors	STAR diagnosis, menu point Actuation, synchronization of actuator motors
