Removing and installing electronic blower regulator - AR83.25-P-1220M
MODEL 215, 220
| Removal, installation | |||
| 1 | Remove cover below instrument panel on right | Model 215 | AR68.10-P-1520N |
| Model 220 | AR68.10-P-1520M | ||
| 2 | Disconnect blower connector | ||

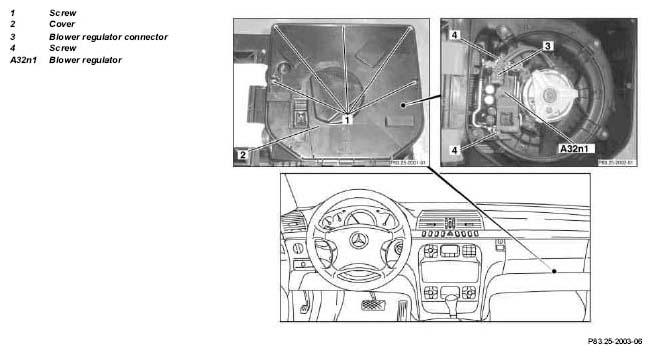

| 3 | Unscrew screws (1) | ||
| 4 | Remove cover (2) | ||
| 5 | Disconnect connector from blower regulator (3) | ||
| 6 | Unscrew screws (4) | ||
| 7 | Remove blower regulator (A32n1) | ||
| 8 | Install in opposite order |
