Removing and installing air collector box and water collector - AR83.10-P-9998M

MODEL 215, 220

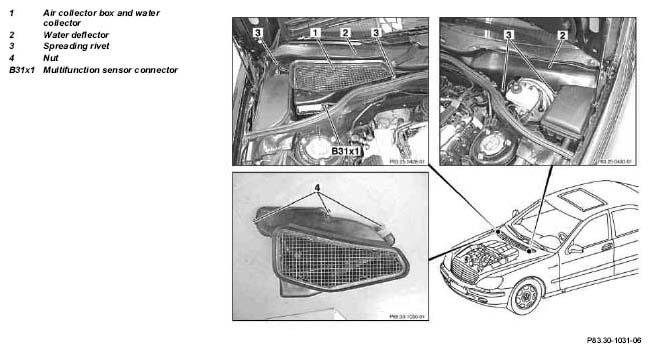

Fig 1: Identifying Air Collector Box And Water Collector Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

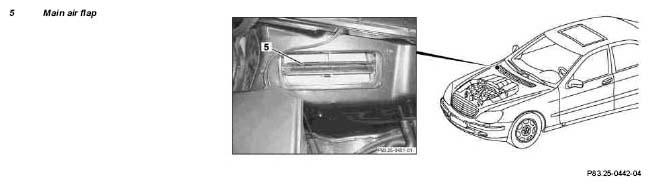

Fig 2: Identifying Air Collector Box And Water Collector Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removal, installation
1	Remove wiper arms		AR82.30-P-6100M
2	Remove spreading rivets (3)
3	Pull out water deflector (2)
4	Disconnect connector from multifunction sensor (B31x1)
5	Unscrew nuts (4)
6	Remove air collector box and water collector (1)	When removing and installing air collector box and water collector (1), ensure that main air flap (5) is not damaged
7	Install in opposite order
