Remove/install stepper motor of center nozzle/footwell flap of rear air conditioning - AR83.50-P-9060M

MODEL 220 with CODE (582) Rear air conditioning

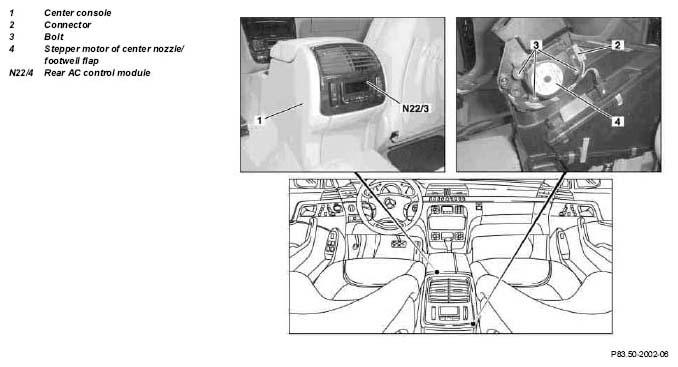

Fig 1: Identifying Stepper Motor Of Center Nozzle/Footwell Flap Of Rear Air Conditioning Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove rear AC control module (N22/4)		AR83.50-P-9070M
2	Remove center console (1)	Except models 220.074/ 174.	AR68.20-P-2000M
		Only models 220.047/ 174.	AR68.20-P-2000AM
3	Disconnect connector (2)
4	Unscrew 3 bolts (3)
5	Detach stepper motor of center nozzle/footwell flap (4)
6	Install in the reverse order
7	Synchronize the stepper motors	STAR-Diagnosis, menu item Actuations, Synchronization of the actuator motors.
