Remove and install heat exchanger for rear air conditioning - AR83.50-P-9110M
MODEL 220 with CODE (582) Rear air conditioning
| Remove/Install | |||
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. | AS20.00-Z-0001-01A | |
| Wear protective gloves, protective clothing and eye protection. | |||
| 1 | Reduce pressure in cooling system | ||
| 2 | Drain coolant, pour in | AR20.00-P-1142HA | |
| 3 | Remove rear AC control module (N22/4) | AR83.50-P-9070M | |
| 4 | Remove center console (1) | AR68.20-P-2000M | |
| AR68.20-P-2000AM | |||
| 5 | Remove connector at rear evaporator temperature sensor | ||
| 6 | Unclip wiring harness (2) at top part of housing | ||

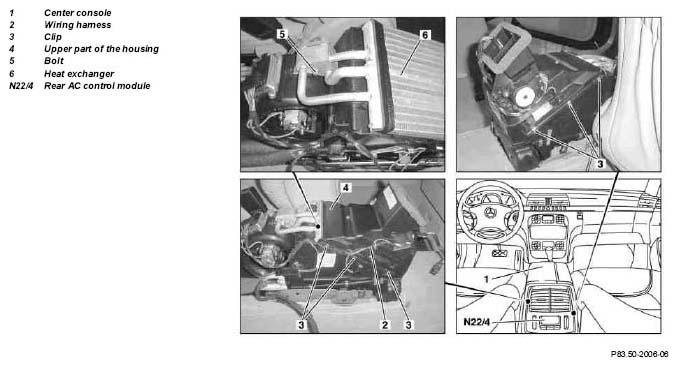

| 7 | Unclip 6 clips (3) | ||
| 8 | Remove top part of housing (4) | ||
| 9 | Unscrew bolt (5), close and remove heat exchanger (6) | *BA83.50-P-1004-01A | |
| 10 | Replace receiver/drier | AR83.30-P-6520M | |
| 11 | Install in the reverse order |
REAR AIR CONDITIONING UNIT
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA83.50-P-1004-01A | Separation point of coolant lines at rear air conditioning heat exchanger | NM | 8 |
