Remove/install slide rail in timing case cover - AR05.10-P-8484RVK

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074 /174

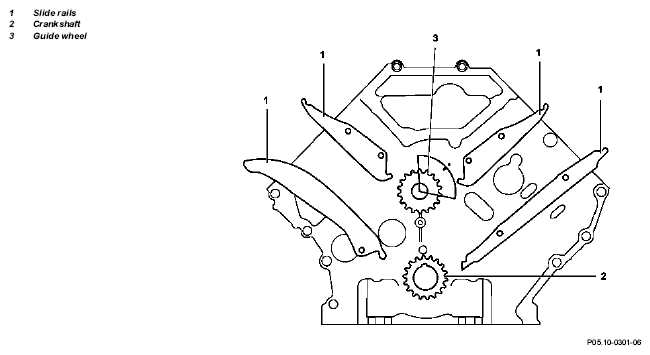

Fig 1: Identifying Slide Rail, Guide Wheel And Crankshaft Components

G04839513

	Remove/install
1	Remove engine compartment paneling	Models 220, 215	AR61.20-P-1105M
		Model 211	AR61.20-P-1105T
2	Drain and collect engine oil		*BA01.45-P-1003-01B
			*BF18.00-P-1001-01H
3	Remove cylinder heads		AR01.30-P-5800BA
4	Remove oil pan bottom section		AR01.45-P-7555R
5	Remove timing case cover		AR01.40-P-8000RVK
6	Remove slide rails (1)	At the same time detach slide rails (1) toward front from the retaining bolts.
7	Install in the reverse order

TORQUE SPECIFICATION

OIL PAN TORQUE SPECIFICATION

Number	Designation			Engine 113.987/988/991	Engine 113.990
BA01.45-P-1003-01B	Oil drain screw to oil pan	M14	Nm	30	30

FLUID SPECIFICATION

ENGINE LUBRICATION CAPACITY CHART

Number	Designation			Engines 113.987/988/990/992/993/995	Engine 113.944/944/980981/984/984/ 986/991
BF18.00-P-1001-01H	Engine oil	Filling capacity with oil filter	Liters	8.5	7.5
		Filling capacity without oil filter	Liters	8.0	-
		Specifications for Operating Fluids	Sheet	-	-
			Sheet	-	-
			Sheet	BB00.40-P-0229-05A	BB00.40-P-0229-05A
