Adjusting basic position of camshafts - AR05.20-P-2340AV

ENGINE 113.960 with CODE (479) Cylinder shutoff

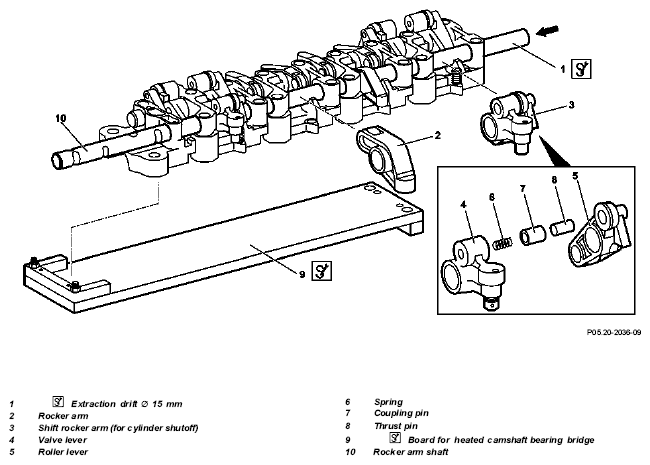

Fig 1: Identifying Camshafts Components
G04839516
MODIFICATION NOTES

28.3.01 Figure changed from 16 Nm to 10 Nm Figure in BA05.20-P-1005-01B changed for Engine 113.960 with Code 479 *BA05.20-P-1005-01B
REMOVING Remove
NOTES The individual components of a shift rocker arm (3) ↓
Valve lever (4)
Roller lever (5)
Coupling pin (7)
Thrust pin (8) are machined together and must therefore not be mixed up.
If the individual components of one shift rocker arm have been mixed up with those of another shift rocker arm, this can result in operational problems of the shift rocker levers.

1 Remove camshaft bearing bridge NOTES Pay attention to slackening diagram. AR05.20-P-7103AV
DANGER Risk of injury  to skin and eyes from handling hot or glowing objects. Wear safety gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
2 Remove rocker arm spindle (3) NOTES If it is difficult to move the rocker arm shaft in its bearings (sticks), the camshaft bearing bridge must be heated: ↓
    Heat camshaft bearing bridge. AR05.20-P-2350AV
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1001-28A
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1003-28A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
3 Remove rocker arm (2) and shift rocker arm (3) IMPORTANT Pull out extraction drift ø 15 mm.
INSTALLING Install
4 Pay attention to assignment of shift rocker arms (3) to the rocker arm shafts (10)
NOTES Notes on shift rocker arms   AH05.20-P-3000-01AV
*BE05.30-N-1001-08A
*BE05.30-N-1002-08A
*BE05.30-N-1003-08A
*BE05.30-N-1004-08A
5 Inspect bearing surfaces of rocker arms (2), roller levers (5), valve levers (4) for damage NOTES Pay attention to longitudinal scores caused by knocking out the arm shafts.
If damage is present ↓
Replace rocker arm or shift rocker arm.

6 Inspect spring (6), coupling pin (7), thrust pin (8) for damage NOTES If damage present: ↓
Replace shift rocker arm.

7 Insert guide shaft into camshaft bearing bridge. IMPORTANT At the same time, preassemble rocker arm and shift rocker arm on guide shaft.
    SPECIAL TOOL Guide shaft ø 16 mm Figure
    SPECIAL TOOL Guide shaft ø 18 mm Figure
DANGER Risk of injury  to skin and eyes from handling hot or glowing objects. Wear safety gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
8 Install rocker arm shaft (3) If it is difficult to insert the rocker arm shaft into its bearings (sticks), the camshaft bearing bridge must be heated: ↓
    Heat camshaft bearing bridge and knock out guide shaft with rocker arm shaft.
NOTES Pay attention to tilting of rocker arms.
AR05.20-P-2350AV
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1001-28A
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1003-28A
9 Install camshaft bearing bridge NOTES Pay attention to tightening diagram. AR05.20-P-7103AV
    TORQUE SPECIFICATION *BA05.20-P-1002-01B
    TORQUE SPECIFICATION *BA05.20-P-1004-01B
    TORQUE SPECIFICATION *BA05.20-P-1005-01B
    TORQUE SPECIFICATION *BA05.20-P-1006-01B
INSPECTION DATA OF ROCKER ARM CODE NUMBERS

Number Designation Engine 113 with code 479
BE05.30-N-1001-08A Left inlet Code number Rocker arm shaft 29
Rocker arm 05/08
Rocker arm shaft 30
Rocker arm 06/09
BE05.30-N-1002-08A Right inlet Code number Rocker arm shaft 32
Rocker arm 05/08
Rocker arm shaft 33
Rocker arm 06/09
BE05.30-N-1003-08A Left exhaust Code number Rocker arm shaft 35
Rocker arm 06
Rocker arm shaft 36
Rocker arm 07
BE05.30-N-1004-08A Right exhaust Code number Rocker arm shaft 38
Rocker arm 06
Rocker arm shaft 39
Rocker arm 07
TORQUE SPECIFICATION CAMSHAFT TORQUE SPECIFICATION

Number Designation Engine 113.960 with code 479
BA05.20-P-1002-01B Bolt of camshaft bearing bridge to cylinder head M7X45 1st stage Nm 10
Step 2 ∠ ° 90
BA05.20-P-1004-01B Bolt of camshaft bearing bridge to cylinder head M7X84 1st stage Nm 10
Step 2 ∠ ° 90
BA05.20-P-1005-01B Bolt of CSO control valve to camshaft bearing bridge M7X30 1st stage Nm 10
Step 2 ∠ ° 90
BA05.20-P-1006-01B Bolt, CSO control valve to cylinder head M7X90 1st stage Nm 10
Step 2 ∠ ° 90
M7x120 1st stage Nm 10
Step 2 ∠ ° 90
Fig 2: Identifying Drift (112 589 00 15 00)
G04839517
Fig 3: Identifying Guide Shaft (112 589 02 31 00)
G04839518
Fig 4: Identifying Guide Shaft (112 589 03 31 00)
G04839519
Fig 5: Identifying Board (112 589 10 59 00)
G04839520
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1001-28A Recirculated air warming cabinet
WH58.30-Z-1003-28A Heating oven
