Removing/installing a lambda probe - AR14.00-P-5303M
ENGINE 275 in MODELS 215, 220
  |
Removing/installing |
|
|
 |
Lethal injuries
are possible if vehicle slips off the lifting platform |
Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
|
Risk of injury
to fingers being jammed or squeezed
when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof. |
Ensure that no body parts or limbs are within the operating range of moving parts when moving components. |
AS00.00-Z-0011-01A |
| 1 |
Open engine hood |
|
AR88.40-P-1000M |
| 2 |
Remove engine trim panel |
|
AR01.10-P-2405LA |
| |
O2 sensors upstream of the three way catalytic converter |
|
|
| 3 |

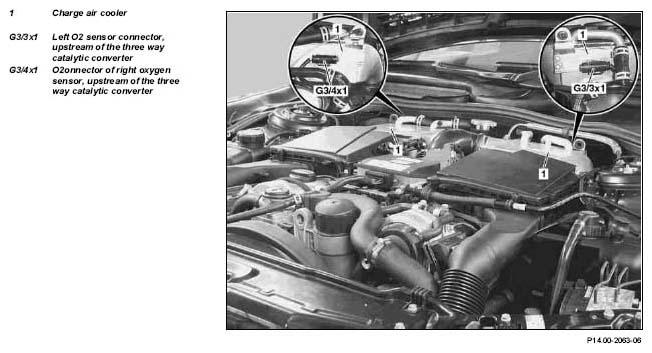

Separate right O2 sensor connector, upstream of the three way catalytic converter (G3/4x1) and left O2 sensor connector, upstream of the three way catalytic converter (G3/3x1) at charge air coolers (1) |
|
|
| 4.1 |
Remove heat shield (2) |
when removing the right O2 sensor rechts, upstream of the three way catalytic converter (G3/4) |
|
| 5 |

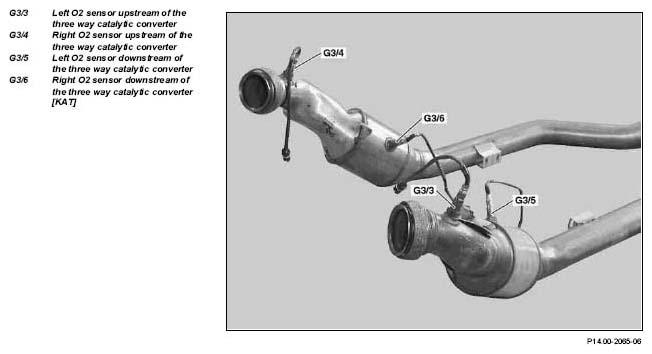

Screw out the right O2 sensor, upstream of the three way catalytic converter (G3/4) and the left O2 sensor, upstream of the three way catalytic converter (G3/3) |
 |
*BA14.00-P-1001-01C |
| |
|
Box wrench bit |
Figure |
| |
|
 Installation:
Coat thread of O2 sensors with heat-resistant lubricant. |
*BR00.45-Z-1005-06A |
| |
O2 sensors downstream of the three way catalytic converter |
|
|
| 6 |

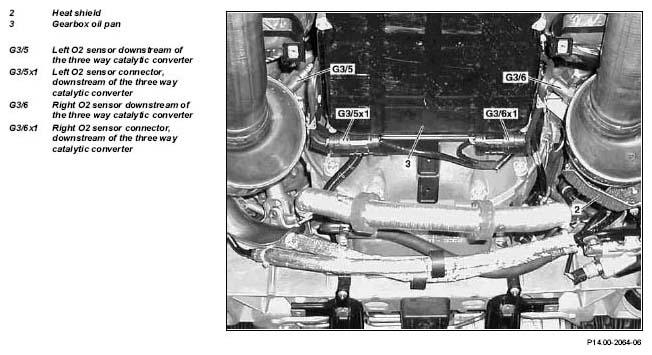

Disconnect right O2 sensor plug connector, downstream of the three way catalytic converter (G3/6x1) and left O2 sensor plug connector, downstream of the three way catalytic converter (G3/5x1) at transmission oil pan (3) |
|
|
| 7 |
Screw out the right O2 sensor, downstream of the three way catalytic converter (G3/6) and the left O2 sensor, downstream of the three way catalytic converter (G3/5) |
|
*BA14.00-P-1001-01C |
| |
|
Box wrench bit |
Figure |
| |
|
Installation:
Coat thread of O2 sensors with heat-resistant lubricant. |
*BR00.45-Z-1005-06A |
| 8 |
Install in the reverse order |
|
|
O2 PROBE
| Number |
Designation |
Engine 275, 285 |
| BA14.00-P-1001-01C |
O2
sensor at exhaust pipe/exhaust manifold |
NM |
50 |
REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1005-06A |
Paste |
A 000 989 76 51 |
