Removing and installing door catch - AR72.10-P-2100MC

MODELS 220.175 /178 with CODE (Z04) Light armoring

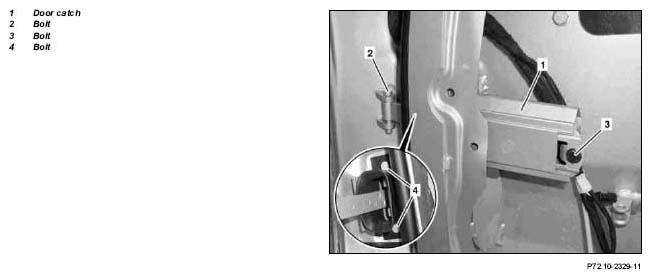

Fig 1: Identifying Door Catch And Bolt

	Remove/install
1	Remove inner door panel		AR72.10-P-0104MC
2	Remove bolt (2)
3	Unscrew screws (3, 4)
4	Remove door catch (1)
5	Install in the reverse order
