Remove/install switches for power window in rear doors - AR72.29-P-0002M

MODEL 220

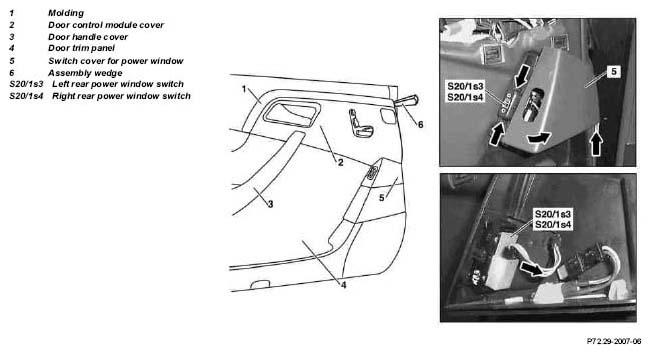

Fig 1: Identifying Rear Doors Power Window Switches Remove/Install Components

	Remove, Install
1	Press molding strip (1) out of door control module cover (2) on driver's door with assembly wedge (6)		Figure
2	Remove door handle cover (3) from door handle
3	Unscrew door control module cover (2) from door liner (4) of driver's door and press off with assembly wedge (6)		AR72.10-P-1000M
			Figure
4	Unclip switch cover (5) from door liner (4)	For this purpose open ashtray in rear door and lift switch cover (5) until switch cover (5) can be pivoted over switch Move switch cover (5) out of retaining clip (arrow) and remove switch cover (5)
5	Disconnect connector from left/right power window switch (S20/1s3, S20/1s4)
6	Unclip left/right power window switch (S20/1s3, S20/1s4) from ashtray housing	For this purpose press retaining lugs for switch (arrow) together with suitable tool and remove switch toward rear
7	Install in the reverse order
8	Carry out function check

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
