Remove/install rear door damper - AR72.12-P-2200MB

MODEL 220.175 /178 with CODE (Z07) Top protection

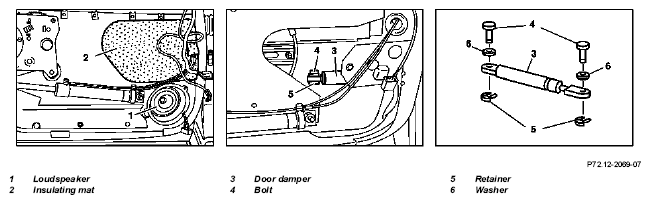

Fig 1: Identifying Rear Door Damper Remove/Install Components

	Remove/install
1	Remove door lining from rear door		AR72.12-P-1010MB
2	Carefully loosen insulating mat (2)	Installation:  Check insulating mat (2) and sealing tape for damage, replace if necessary.
3	Remove retainers (5) and bolts (4) with washers (6)
4	Remove door damper (3)	Installation:  The noticeable unevenness on the damper housing (3) must point upward. The new door damper (3) should have the same length as the previous one.
5	Install in the reverse order
