Remove/install power window on rear door - AR72.12-P-1810M

MODEL 220

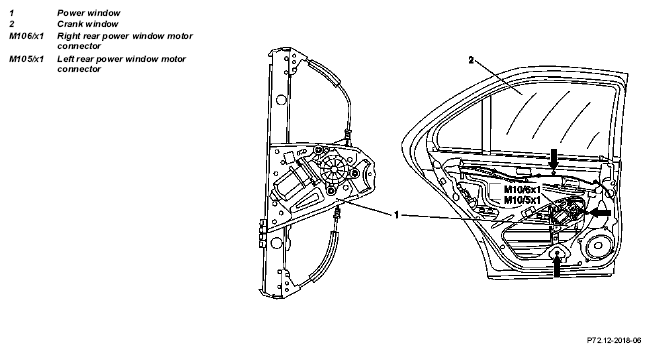

Fig 1: Identifying Power Window On Rear Door Remove/Install Components (1 Of 2)

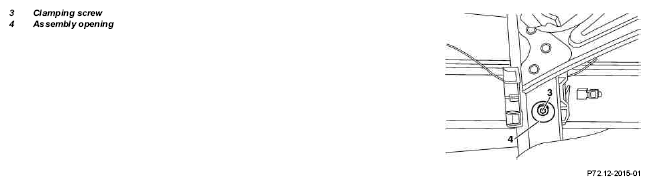

Fig 2: Identifying Power Window On Rear Door Remove/Install Components (2 Of 2)

	Remove, Install
1	Remove/install door liner on rear door		AR72.12-P-1010M
2	Remove insulating mat from inner door panel
3	Unscrew mounting screw (3)	Removal:  Open crank window (2) until the mounting screw (3) is accessible in the assembly opening (4) of the power window guide rail Installation:  Install screw (3) so that the crank window (2) can be moved up and down properly
4	Move crank window (2) completely upward	Secure against falling down with assembly wedges.	Figure
5	Drill pop rivet (arrows) out of inner door panel or cut out	To drill out use Ø 4.8 mm dia. bit and do not damage inner door panel. Use punch to drive out remaining rivet residues. Remove rivet residues and chips from door, danger of rust Installation:  Rivet power window (1) to inner door panel flush with new pop rivets.
6	Remove power window motor connector (M10/6x1, M10/5x1) from power window motor
7	Unhook power window (1) from inner door panel and remove through assembly opening.	Installation:  Hook power window in at inner door panel with assembly hook
8	Install in the reverse order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)
