Remove/install right trailer hitch longitudinal member - AR31.30-P-0006M

MODEL 215.375 /378, 220.026 /028 /063 /065 /070 /075 /126 /128 /165 /170 /175 /178 1# up to 31.8.02 with CODE (550) Trailer hitch except CODE (772) AMG styling package - front spoiler, side skirts and rear apron Mechanical swing-away trailer hitch

MODEL 215.375 /376 /378, 220.025 /026 /028 /063 /065 /067 /070 /075 /083 /084 /087 /125 /126 /128 /165 /167 /170 /175 /176 /178 /183 /184 /187 1# as of 1.9.02 with CODE (550) Trailer hitch except CODE (855) TELE AID except CODE (772) AMG styling package - front spoiler, side skirts and rear apron except CODE (979) Special protection version Mechanical swing-away trailer hitch

Shown on model 220

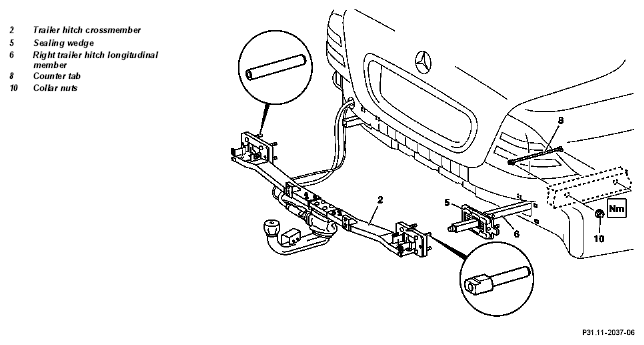

Fig 1: Identifying Right Trailer Hitch Longitudinal Member Remove/Install Components - Shown On Model 220

	Remove
	Notes on installing a trailer hitch		AH31.10-P-1000-02B
	Notes regarding work on trailer hitch		AH31.10-P-1000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Remove battery		AR54.10-P-0005I
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery	Model 215 as of 1.1.01 Model 220.028 with code 450, Taxi version Model 220.070/075/175/178/875/878 as of 1.1.01	AH54.10-P-0002-01A
2	Remove trailer hitch crossmember (2)	Model 220	AR31.30-P-0007M
		Model 215	AR31.30-P-0007N
3	Remove exhaust system as of flange connection	Engine 275	AR49.10-P-7280M
		Engine 112, 113, 613, 628, 648, 137, refer to: ↓ Remove complete exhaust system:
		Engine 112, 113	AR49.10-P-7000AA
		Engine 613	AR49.10-P-7000M
		Engine 628	AR49.10-P-7000MB
		Engine 648	AR49.10-P-7000MZ
		Engine 137	AR49.10-P-7000L
4	Remove shield above rear muffler	Only remove right shield.
5	Unscrew collar nuts (10) from right trailer hitch longitudinal member (6) in luggage compartment
6	Remove right counter tab (8) from right vehicle longitudinal member
7	Pull right trailer hitch longitudinal member (6) backwards out of right vehicle longitudinal member with sealing wedge (5)
	Install
8	Push right trailer hitch longitudinal member (6) into right vehicle longitudinal member with sealing wedge (5)	Ensure sealing wedge (5) is seated correctly.
9	Insert right counter tab (8) into right vehicle longitudinal member
10	Screw on collar nuts (10)	Install new collar nuts (10). Do not tighten collar nuts (10) yet.
11	Install trailer hitch crossmember (2)	When installing one or both longitudinal members, trailer hitch crossmember (2) must be centered using two alignment punches on left and right (see enlarged view).
		Model 220	AR31.30-P-0007M
		Model 215	AR31.30-P-0007N
12	Tighten collar nuts (10) of right trailer hitch longitudinal member (6) to torque	Collar nut, longitudinal member reinforcement to longitudinal frame member	*BA31.11-P-1003-01A
13	Install in the reverse order	Work step 4 to 1, except work step 2
14	Conduct function check on mechanical swing-away trailer hitch		AR31.19-P-1450M
