Removing and installing trunk lid opening angle detection sensor - AR88.50-P-5065N
MODEL 215, 220 with CODE (881b) Trunk lid remote control (RTL)

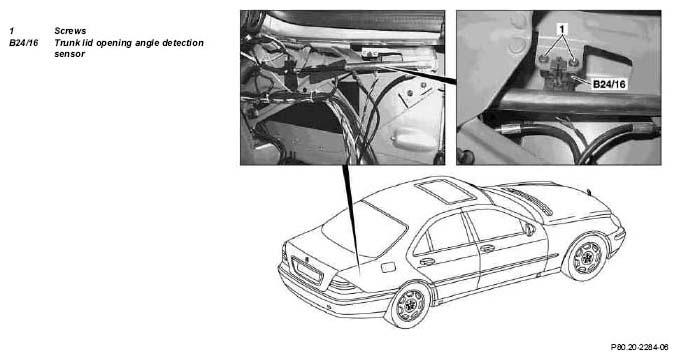

Shown on model 220
| Removing, installing | |||
| 1 | Withdraw ignition key | ||
| 2 | Remove paneling in trunk | AR68.30-P-4600M | |
| 3 | Disconnect electric connector on sensor for trunk lid opening angle detection (B24/16) | ||
| 4 | Unscrew screws (1) | ||
| 5 | Carefully pry out sensor for trunk lid opening angle detection (B24/16) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform synchronization | Refer to: ↓ STAR DIAGNOSIS |
