Remove/install front fender - AR88.10-P-1000M

MODEL 220

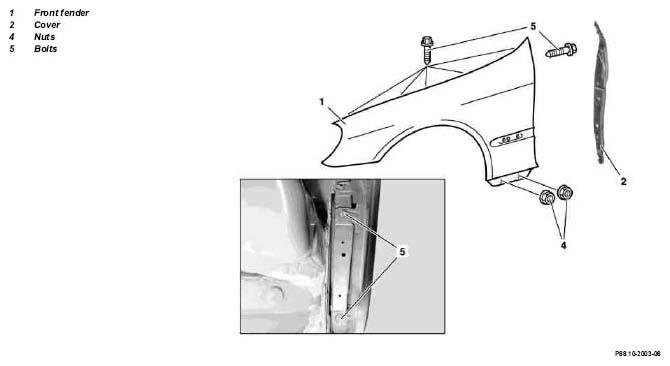

Fig 1: Identifying Front Fender Remove/Install Components - Model 220 (1 Of 2)

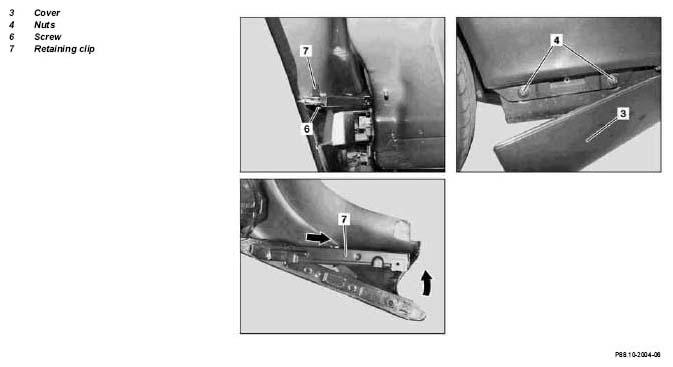

Fig 2: Identifying Front Fender Remove/Install Components - Model 220 (2 Of 2)

	Remove/install
1	Open engine hood, position vertically		AR88.40-P-1000M
2	Completely remove inner fender in front fender		AR88.10-P-1300M
3	Remove screw (6)
4	Pivot retaining bracket (7) to center of vehicle, pull toward rear and remove retaining bracket (7)
5	Unclip cover (2)	Door completely open
6	Remove spreading rivet
7	Press off cover (3) and press downward until nuts (4) are accessible	Do not damage cover	Fig 3
8	Unscrew screws (5)
9	Remove fender (1)
10	Install in the reverse order	Installation:  Observe correct position in relation to driver's door and engine hood, inner fender seal should make contact

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)
